Summit Porcelain Furnace

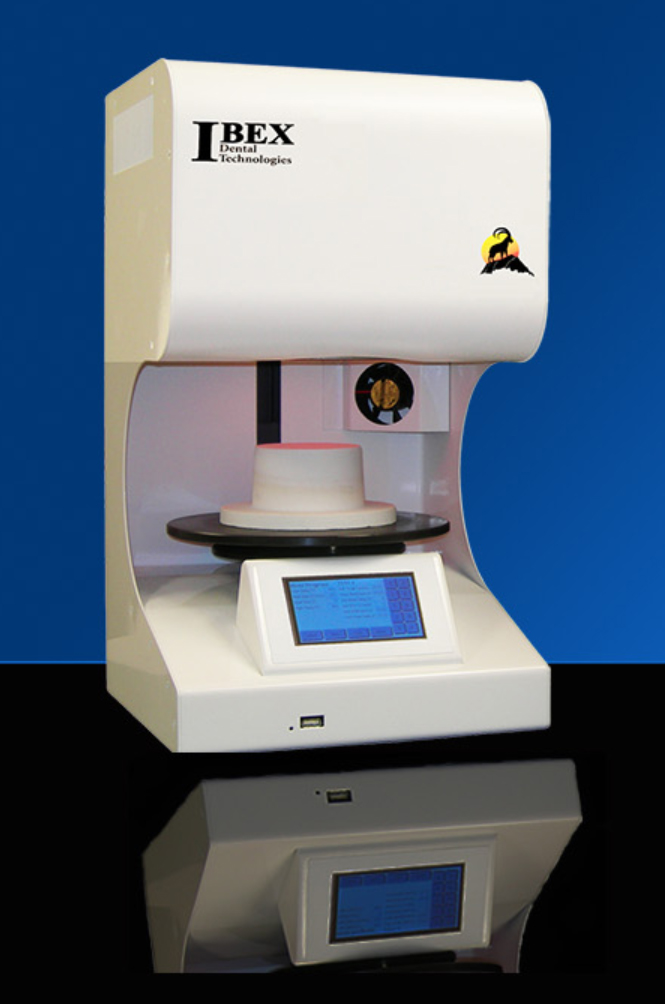

SUMMIT Porcelain Furnace (IBEX)

Fires equally as well as higher priced imported ovens.

The Ibex long-life muffle with Radiance Ring™  technology provides unparalleled consistency of even firings regardless of the location the work has been placed on the tray, firing after firing. The Summit muffle eliminates temperature variances and makes the oven ideal for everything from single units to large bridges.

With the help of the Radiance Ring™, heat is able to bathe the firing tray in one smooth, homogenous band of energy.

Entering and editing programs is quick and simple with the high-resolution touch screen. Changes can be made mid-program.

Perform software upgrades and transfer programs rapidly between ovens through the USB port with the IBEX memory stick.

The Summit's quick-cool fan blows ai tangentially across the muffle opening, drawing the hot air out and truly lowering the temperature of the muffle - not just of the termocouple - reducing cooling time by up to 50%.

FURNACE FEATURES

  • Small footprint
  • Consistent Results
  • No Hot or Cold Spots
  • USB programmability
  • High Efficiency Cooling Fan
  • User-friendly, intuitive design
  • Simple Touch Screen Operation
  • Temperature Calibration Eliminated
  • Ultra Accurate Temperature Control
  • Ability to edit parameters mid-program
  • Exclusive Radiance Ring™ technology
  • Superior Performance at an Exceptional Price
  • Summit Furnaces come with a 3-year mechanical warranty and a 4,000-hour muffle warranty

TECHNICAL SPECIFICATIONS

  • Power Supply: 105-125 VAC
  • Power Usage: 1200 Watts
  • Muffle Chamber: 3.125" Diameter x 2.25" High
  • Muffle Windings: Open-Wire with Radiance Ring
  • Max. Temperature: 1200C / 2200F
  • Dimensions: 11"L x 11"W x 20.75"H

MPN #SM1000
Weight:60.00 lbs.
Price:$4500.00

   Qty:
