Owandy I-Max Touch 3D Digital Panoramic X-Ray + SimPlant

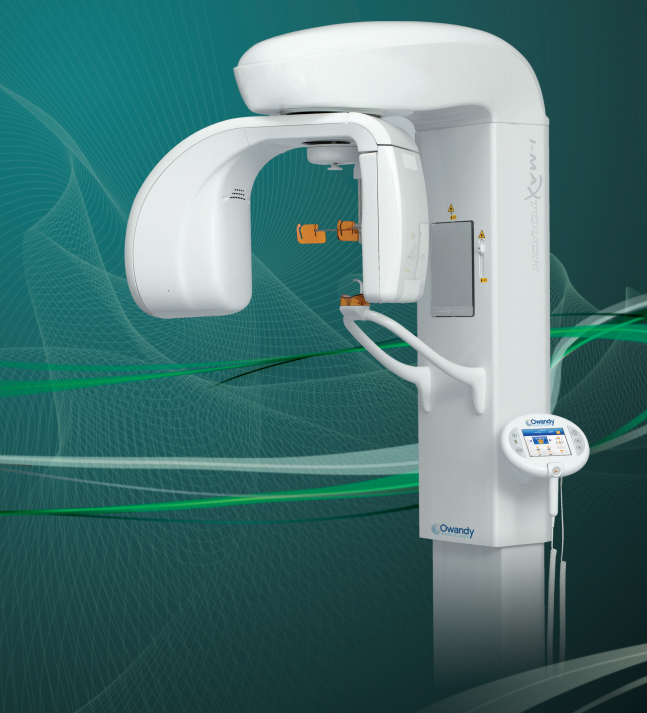

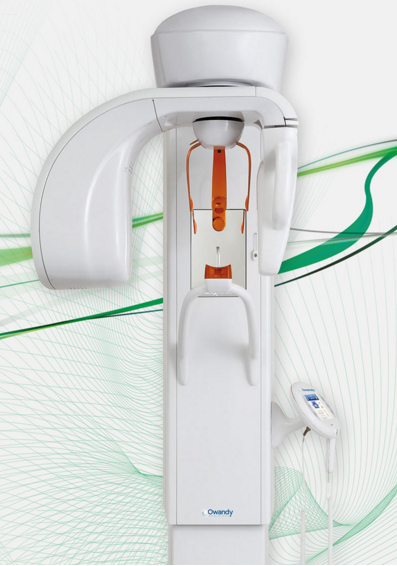

I-Max Touch 3D Digital Panoramic X-Ray (Owandy)

A new dimension for a complete diagnosis!

Universal 3D volume. The high volume I-Max Touch 3D (ø93mm x H83mm) delivers acquisition in one single image, covering the entire jaw, including impacted molars, regardless of patient morphology.

Multi FOV. The I-Max Touch 3D multi FOV tridimensional imagimg system is an essential tool and analysing complex cases in implantology and guided surgery, as well as dental surgery, endodontics, periodontics, and general practice. The following volumes can now be acquired:

  • Mandibular: 93 x 53 mm
  • Maxillary: 93 x 43 mm

HD sensor. The high-contrast HD image generated by the flat panel sensor enables the practitioner to make an accurate diagnosis in seconds.

3 in 1: three acquisition modes in a single device. The I-Max Touch 3D panoramic unit is an economical, upgradeable, high quality imaging solutions. With three complete programs (Pan/Seph/3D), you can perform 3D examinations and also take true panoramic shots (not just reconstructed from 3D volume) and cephalometric images (optional).

The only turnkey system of its kind in the world. The combination of the I-Max Touch 3D high-performance panoramic unit with SimPlant Pro, one of the top therapeutic 3D planning software packages, offers precise and dependable planning and simulation of your implant work.


  • 3D Rotation: 200° (180° ATM)
  • Rotation time: 20s
  • Exposure time: 8 s (pulse generator)
  • Digital sensor: Amorphous silicon panel
  • Area: 130 x 130 mm, 512 x 512 pixels
  • F.O.V. (Field Of View): 93 x 83 mm / 93 x 53 mm / 93 x 43 mm
  • Voxels: 92 μm

Please, call for freight quote

Please Call for Availability (866) 697-7744

MPN #9306251191
Weight:99.99 lbs.
