MX2 LED Brushless Micromotor

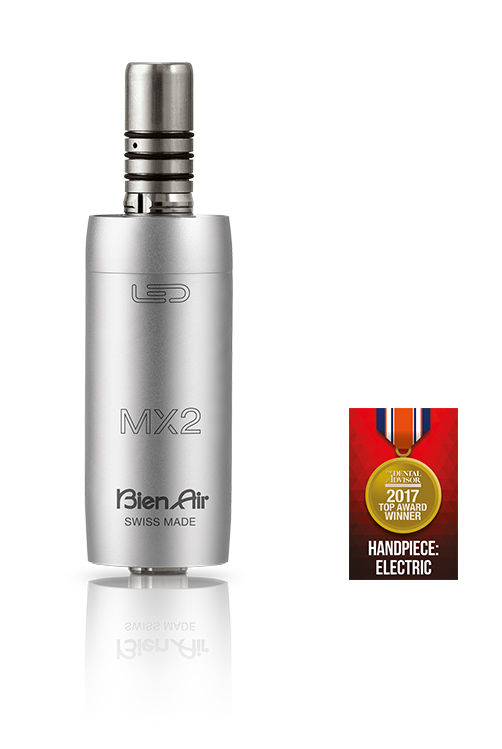

MX2 LED Brushless Micromotor (Bien Air)

Balance and comfort, constant power, perfect control of the speed, torque and reversal of the direction of rotation - Thanks to Smart-Logic electronic control, the MX2 is exceptionally stable and powerful, even at low speeds (100 rpm) - 3 Year standard warranty.

HOW DO MX2 LED BRUSHLESS MICROMOTORS WORK?

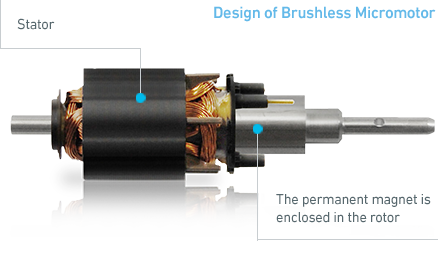

Like any other electric micromotor, brushless micromotors consist of a rotor and a stator. Unlike the brush micromotor, the rotor consists of a permanent magnet, while the coils are mounted to the stator. The mechanical switching function, implemented by the brush and collector combination in a carbon brush-type micromotor, is replaced by a sophisticated electronic drive that became possible only with the development of high-speed and powerful microprocessors. The electronic drive creates a rotating electric field in the stator that interacts with the permanent magnet.

BRUSHLESS TECHNOLOGY A NEW DIMENSION

  • Greater Power and More Torque.A major attribute of Bien-Air micromotors is their elevated power output with constant torque for swift and effortless use.
  • Accurate Command.The proprietary Smart Logic™ electronic control lends Bien-Air micromotors a step-less, vibration-less rotation for the most meticulous and precise dental work.
  • Compact and Lightweight.Bien-Air micromotors are significantly shorter and lighter than conventional models. This results in optimal grip and balance as well as reduced hand fatigue.
  • Maintenance-Free.Bien-Air micromotors’ ball bearings are greased for life making post-usage lubrication expendable. Built to withstand repeated sterilization cycles, the strictest hygiene standards are upheld.
  • Easy and economical to maintain
  • 3 Years Warranty

MICRO-SERIES. WELCOME TO A NEW DIMENSION.

Bien-Air’s new generation Micro-Series models ally innovation with compact design, resulting in improved power and maneuverability. Up to 30 percent shorter and 23 percent lighter than traditional models, they have an easy grasp that allows for optimal work comfort with less strain on the hand, arm, and shoulder.

NOISE LEVELS REDUCED AND LESS VIBRATIONS

A Bien-Air electric micromotor reduces noise levels by 2 compared to an air turbine. This greatly decreases patient anxiety and discomfort and allows the dentist to work more efficiently. It also vibrates considerably less. This offers greater cutting precision and a smoother finish.

TECHINCAL DATA

  • Applications: Restorative, Prophylaxis, Endodontics
  • Type: Brushless, internal spray
  • Speed Range: 100-40,000 RPM
  • Max Torque: 3.5 Ncm
  • Torque Control: Yes
  • Dimensions: Ø 21 x 50 mm
  • Light: LED with adjustable intensity
  • Max noise level, compliant with ISO 11498: 51 dBA
  • Sterilisable: Yes
  • Ball Bearings: Life-time lubricated ball bearings
  • Hose Rotation: ± 200°
  • Warranty: 3 year standard warranty

MPN #1600677-001
Weight:1.00 lbs.
Price:$1503.60

   Qty:
