Hub accessory Adapter Fittings 20 Piece

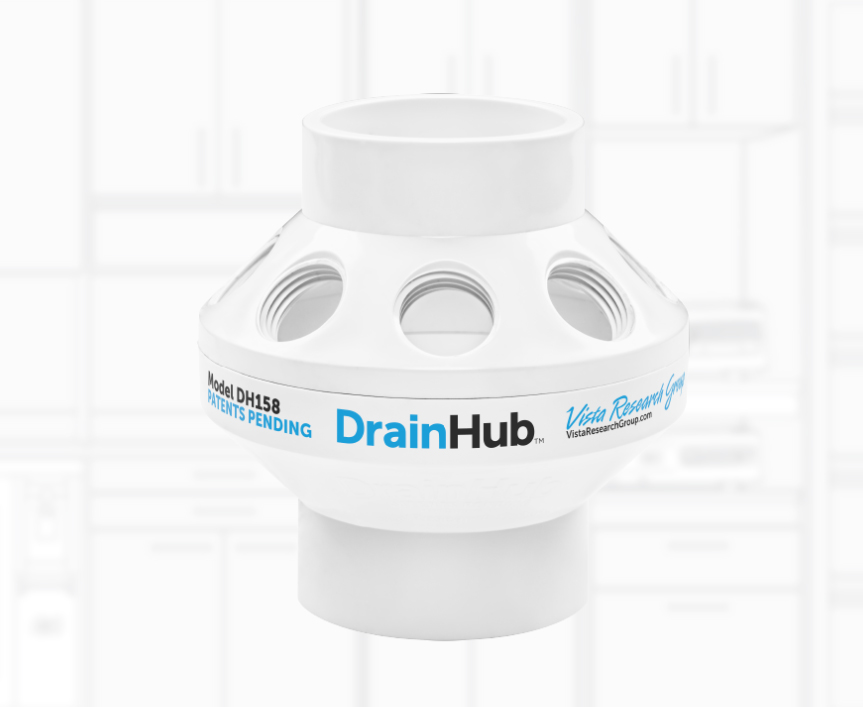

Vista DrainHub Multi-Port Drain Adapter (SciCan)

The Ultimate Drain-Space Saver. The DrainHub multi-port drain adapter provides drain connections for sterilizers, instrument washers, water purification systems and more.

The DrainHub multi-port drain adapter accepts up to eight drain connections in one small hub – saving space, cost and time.

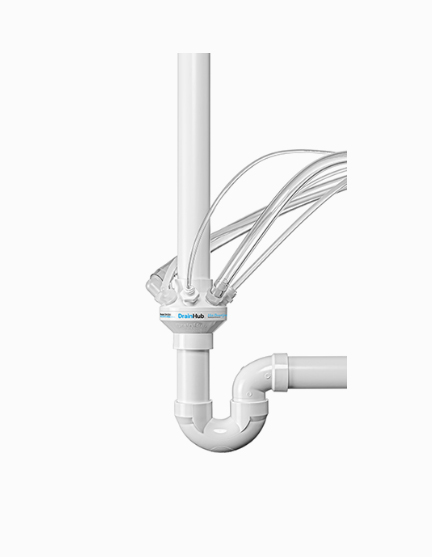

  • Installation beside the main drain line can offer maximum flexibility and can be achieved with the use of a simple drain tee adapter fitting.
  • When possible, as in cases of a new construction, it can be beneficial to run parallel drain waste systems to separate waste from the sink from other applicances and devices.
  • When necessary it is possible to install the DrainHub fitting directly in the main drain line under a sink. However, this position can result in more audibly noticeable drainage of waste containing a significant amount of air.

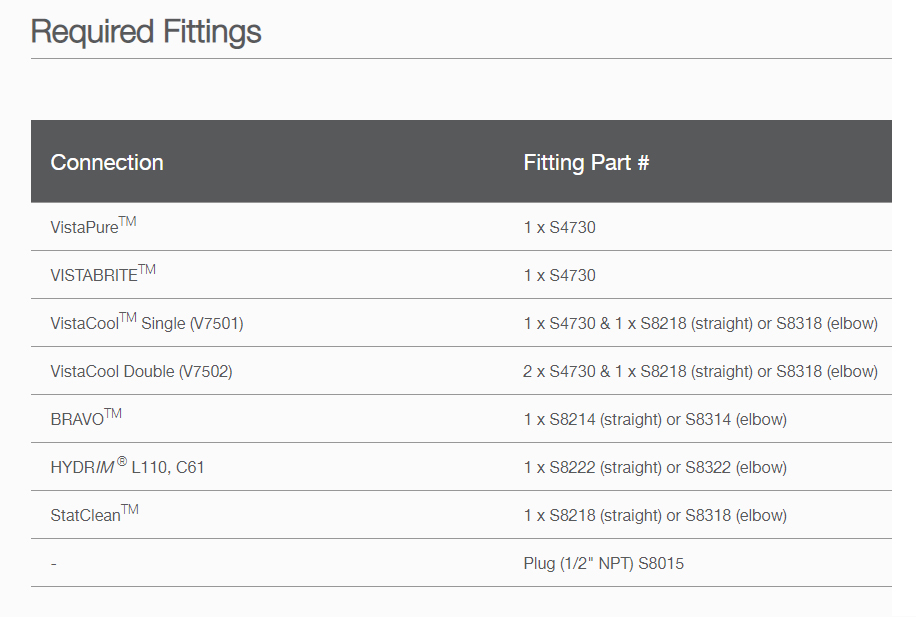

DrainHub is easy to install, and its 1⁄2” NPT threaded ports accept a variety of push-to-connect, compression, and hose barb adapter fittings.

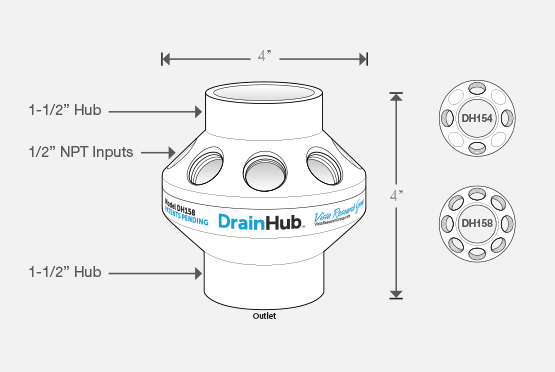

Materials & Dimensions

  • Schedule 40 PVC
  • 12” NPT threaded inputs (2, 4 or 8)
  • Top & bottom slip hubs accept 1-12” pipe
  • Bottom hub O.D. glues into 2” coupling

Codes & Standards Compliance

  • ASTM D2665 (PVC)
  • ASTM F1498 (Threads)
  • ASME A112.18.2-2015
  • FDA Title 21 Material

MPN #DH8200
Weight:1.00 lbs.
Price:$79.00

   Qty:




You may also interested in related products:

MPN # Product Price, $
DH152 2 Hole Vista DrainHub
62.00
DH154 4 Hole Vista DrainHub
62.00
DH158 8 Hole Vista DrainHub
62.00
DH158-82 Combination Package of 8-port DrainHub & DH8200 Fittings Accessory Kit
134.75
