FIXER MODULE - MK5/6

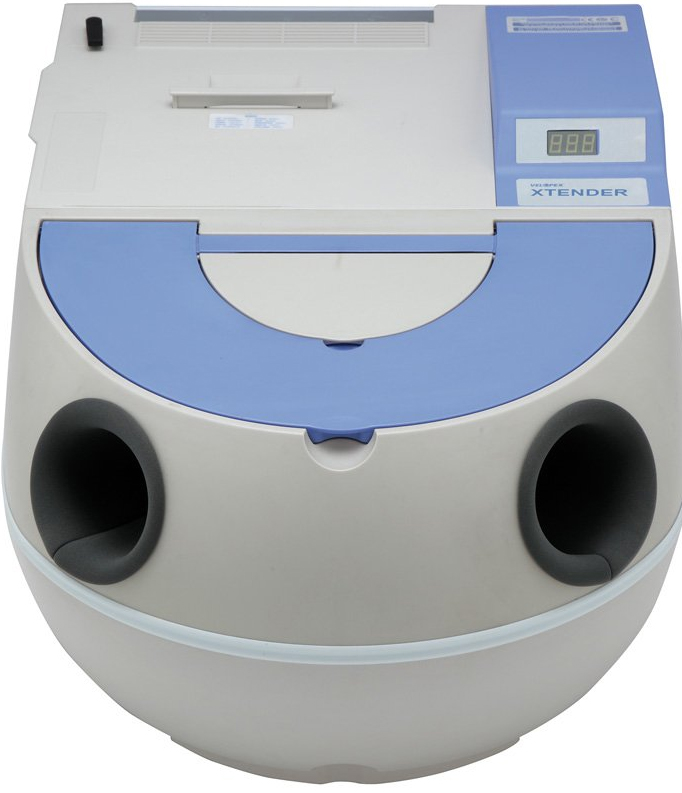

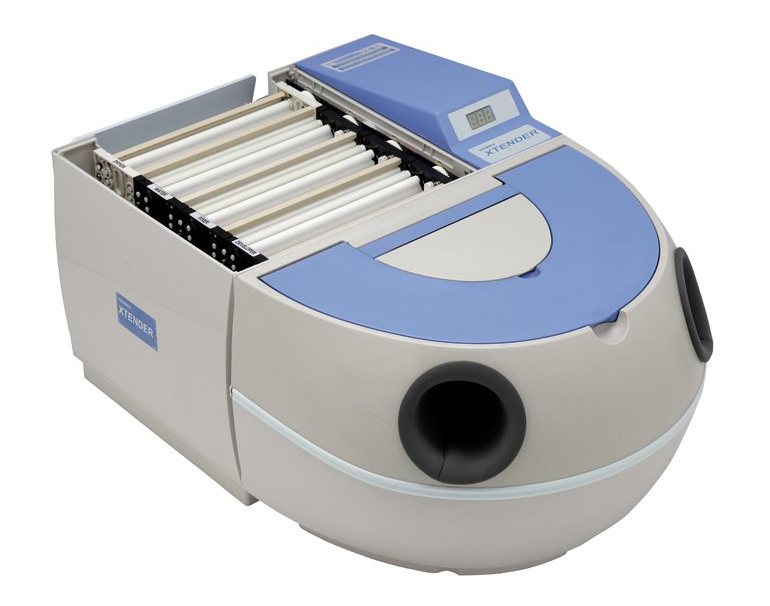

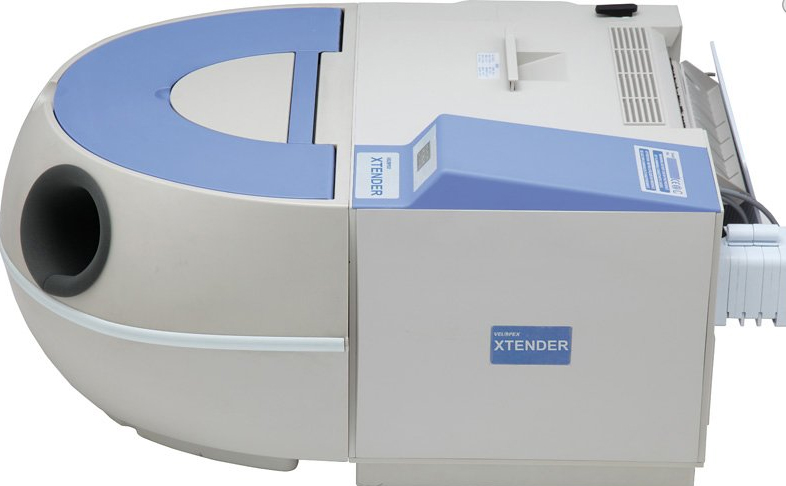

XTENDER (Velopex)

Processes all sizes of film from intra-oral size, to panoramic and cephalometric (full skull size). High quality, archivable radiographs are delivered dry in five minutes. Endodontic films may be viewed wet (archival) after only two minutes 30 seconds. Has high capacity external reservoirs for processor chemistry and recirculation pump for automatic chemical recycling with extended chemical life. Includes unit self-filling from developer and fixer reservoirs.

Easy-to-use daylight loader (optional) eliminates the need for a darkroom. Films are processed automatically on insertion of the film. Unique film transport system ensures consistently excellent results.Electronic management system shows machine status and help codes. Compact dimensions, simple installation and minimal servicing.


SPECIFICATIONS

  • Dimensions: Width 20", Height 13.5", Depth 18.5" (-daylight loader) / 29" (+daylight loader)
  • Weight: Empty 40.7lbs, Full tanks 53.9lbs
  • Tank Capacity: One US Gallon for developer and fixer tanks 0.75 US Gallons for water tank
  • Voltage: 100-120V, 200-240V (50/60Hz)
  • Chemical Temp: Developer 77F, Fixer 81.5F
  • Warm-up time: 10 minutes approx
  • Film Feed Speed: 18.5" per min
  • Max Film Width: 10.2"
  • Processing Time: Dry (5 mins approx), Wet (2 mins approx)
  • Complies with: IEC61010-1:2001 (2nd edition); EN 61010-1:2001 (2nd edition); UL 61010-1 July 12, 2004 deviations;; CAN/CSA-C22.2 No. 61010-1

MPN #I/MOD0085F
Weight:15.00 lbs.
Price:$362.65

   Qty:
